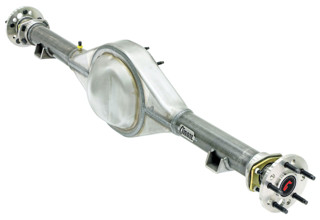

Currie 9-inch Housing and Axle Packages for 1982 thru 1997 Chevy S-10/Blazer and GMC S-15/Jimmy 2WD trucks and SUVs are built to match the vehicle's stock axle width, pinion offset, suspension mounting locations, and wheel bolt pattern - for a straightforward hassle-free installation
Housing and Axle Packages require a 9-inch third-member assembly and compatible brake package to complete the rear-end. Requires assembly of components before installation
Included Standard Features
 |
|
Currie Centurion Housing - Classic notchback looks in a new, high-strength, American-made housing that features 3-inch diameter axle tubes and CNC machined face flange for a flat, leak-free seal - all joined together with strong, attractive welds |
| |
|
|
 |
|
Drain Plug - This standard feature makes routine maintenance so much easier - no more removing the brakes, axles, and the third member for a simple oil change |
| |
|
|
 |
|
Spring Pads - Heavy-duty 1/4-inch thick spring pad mounts are installed in the OEM locations for bolt-in compatibility with the stock leaf spring suspension |
| |
|
|
 |
|
Billet Housing Ends - Currie billet late model Ford Torino large bearing housing ends are CNC machined for accuracy and feature provisions for internal or external axle oil seals |
| |
|
|
 |
|
Alloy Axles - Currie Performance 31-spline 1541H alloy axles feature vehicle correct bolt pattern and wheel studs - Tapered axle bearings shipped loose |
| |
|
|
 |
|
Bearing Retainers - Heavy-duty retainers assure positive bearing retention and full seal engagement for a long trouble and leak-free service life |
NOTES:
Third Member - Currie housing and axle package requires a standard Ford 9-inch third member set up for 31-spline axles
Brake Lines - Hard brake lines are not included with Housing and Axle Packages. Currie offers universal hard brake line kits that fit a broad range of applications
Aftermarket Brakes - Currie crate rear-ends conform to the ABCS (Aftermarket Brake Configuration Standard). This allows brake kits that use this standard to easily be changed or upgraded without modifying the housing or axles. ABCS brakes use a 2.5-inch brake space with late-model big-bearing Ford housing ends and a 2.80 center hole in the drum or rotor
Wheel Studs - Currie crate rear-ends use standardized-shank Currie Enterprises wheel studs that allow the following wheel studs to be interchangeable in the axles without drilling: 12mm, 7/16, 1/2, and 1/2 x 3-inch competition
